Main Unit |

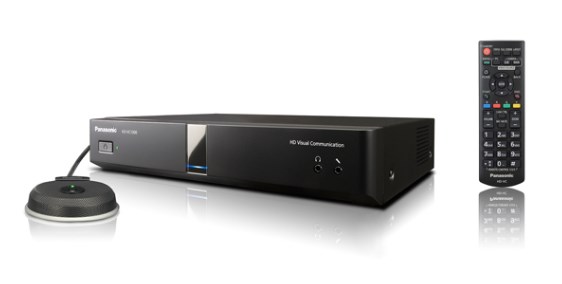

KX-VC1300 |
|
Terminal Method |
IETF SIP, ITU-T H.323 |
|
Image Compression Method |
H.261 (mainstream only), H.263, H263+, H.263++ (reception only),
H.264 High Profile, H.264 Baseline Profile |
|
Audio Compression Method |
G.711μ-law, A-law (3.4 kHz @ 64 kbps)
G.722 (7.0 kHz @ 64 kbps)
G.722.1 (7.0 kHz @ 32 kbps)
G.722.1 Annex C(14.0 kHz @ 48 kbps/24 kbps)
MPEG-4 AAC-LD Mono (14.0 kHz @ 32 kbps, 22.0 kHz @ 96 kbps/64 kbps)
MPEG-4 AAC-LD Stereo (22.0 kHz @ 96 kbps/64 kbps) x 2 |
|
|
No. of Channels |
G.711/G.722/G.722.1/G.722.1 Annex C: 1
MPEG-4 AAC-LD Mono: 1/ MPEG-4 AAC-LD Stereo: 2 |
|
Remote Camera Control |
H.281 (Zoom/Pan/Tilt/Preset) |
|
Dual Stream |
Method |
H.239 (H.323), BFCP (SIP) |
|
Multi-Monitor |
2 Monitors |
|
No. of Applicable Resolution Frames |
Main: Max. 1080p 30 frames/second, Sub: 1080p 30 frames/second |
|
Encryption |
SRTP (AES 128 bit), H.235 (AES 128 bit) |
|
Other |
H.460 |
|
Communication Bandwidth |
256 kbps to 18 Mbps |
|
Video |
Compatible Resolutions |
176 x 144p, 352 x 240p, 352 x 288p, 512 x 288p, 640 x 480p, 704 x 480p,
768 x 432p, 800 x 600p, 1024 x 768p, 1280 x 720p, 1280 x 768p, 1280 x 800p,
1920 x 1080i, 1920 x 1080p |
|
No. of Frames |
Max. 60 frames/second (for H.264 1080p) |
|
Screen Display |
Full-screen, PinP, PwithP, Side by Side |
|
Audio |
Echo canceller, Auto gain control, Auto noise reduction, Lip synch, Mic mute |
|
I/O Terminals |
Video Input |
Camera |
HDMI main x 1, HDMI sub x 1
Input compatible resolution: 1280 x 720p, 1920 x 1080i, 1920 x 1080p |
|
PC |
RGB x 1(Mini D-sub 15pin), HDMI x 1
Input compatible resolution: VGA, SVGA, XGA, HD, WXGA, SXGA, UXGA,
WSXGA+, Full-HD |
|
Video Output |
HDMI x 2
Output compatible resolution:
1920 x 1080i, 1920 x 1080p |
|
Audio Input |
Digital Boundary Microphone x 1 (KX-VCA001),
Max. 4; Analogue Boundary Microphone x 1 (KX-VCA002), Max. 1
Stereo mini-plug ( x 1(ø3.5 mm) RCA (Stereo) x 1 |
|
Audio Output |
HDMI, Stereo x 1 (ø3.5 mm), RCA x 1 (Stereo) |
|
Network |
RJ45 x 1 (100BASE-TX Full Duplex) |
|
External Control |
RS-232C x 1 (Also used for maintenance) |
|
Others |
USB x 1, Camera Control Terminal x 1 (Unused) |
|
No. of Simultaneous Connection Sites |
4 |
|
Content Sharing |
PC(RGB/HDMI), Sub-camera (HDMI sub) |
|
USB Memory |
Version upgrade
Import: Setting data, Address book, Profiles, Starting screen
Export: Setting data, Address book, Profiles |
|
Network Protocol |
TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS, TELNET, NTP |
|
Network Functions |
Automatic Repeat Query (ARQ), Forward Error Correction (FEC),
Adaptive Rate Control (ARC), Reorder, Packet Shaping,
Arbitrary Port Setting, NAT Compatibility, Encryption,
IP Precedence/DiffServ Support |
|
External Control |
Via Web Browser, Control by HTTP CGI, TELNET, RS-232C |
|
Connection Modes |
IP mode, NAT Traversal Service |
|
Dimensions (width x depth x height) |
Approx. 320 mm x approx. 230 mm x approx. 60 mm |
|
Weight |
Approx. 2.0 kg |
|
Power Input |
AC 100-240 V,-1.4A, 50/60 Hz |
|
Power Consumption |
Maximum: approx. 43 W,
Standby: 0.6 W |
|
DC Power Input |
DC 24 V, 2.5 A |
|
Operating Temperature |
0 °C to 40 °C |
|
Operating Humidity |
10 % to 90 % (non-condensing) |
