Features

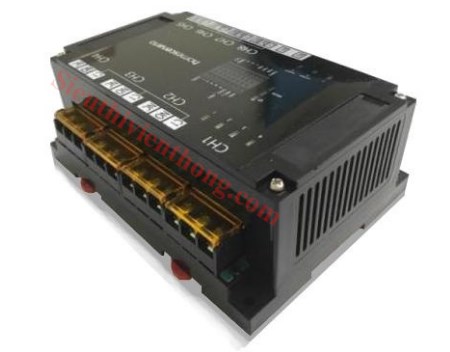

- The HBA-100 is a smart home control module. It can be used to switch on/off for lights and electrical appliances.
- In addition, the HBA-100 supports 4-channel digit inputs, which can used to connect with sensors and/or scenario buttons.
- The HBA-100 works with HomeScenario smart home controllers such as HBC-100/300/500.
- Supports RS-485 /Modbus for wired smart home control
- Provides 4 NC/NO relay outputs with high rating, which can be used to control lighting on/off or window curtain.
- Can be used to switch load of AC or DC
- Max loading (each load): Resistive 20A
- Also provides 4-channel digital inputs, which can be connected with sensor or scenario button
- DIN-Rail installation.
Đặc tính kỹ thuật
|
Interfaces |
|
Serial |
RS-485 (Modbus) |
|
Digital Input |
4x digital inputs, terminal blocks |
|
Relay Output |
4x Max. 20A COM/NC/NO (resistive), terminal blocks |
|
LED Display |
|
Power |
Power on/off |
|
Mode |
Configuration mode status |
|
1/8 |
System ID indication |
|
Environmental Conditions |
|
Operational |
0˚C to 45˚C |
|
Storage |
-20˚C to 60˚C |
|
Humidity |
10% to 85% Non-Condensing |
|
Installation |
DIN-Rail |
|
Protection |
Indoor |
|
Dimension |
155 x 110 x 60mm |
|
Weight |
350g |
- Bảo hành: 12 tháng.
