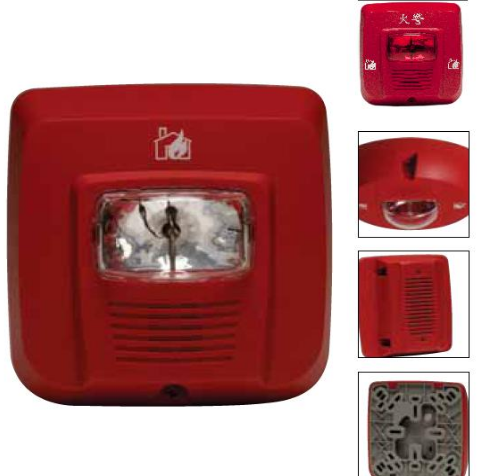

SYS Series - Selectable Output Horns, Strobes, and Horn StrobesNgày đăng:29/06/2021 - 401 lượt xem
  • https://thietbiphutro.net/pic/Product/SYS-Series-SYS-Series.bmp
Mã hàng: SYS Series
Hãng sản xuất:
Xuất xứ:
Tình trạng:
Bạn có biết:
System Sensor selectable output horns, strobes,and horn strobes are rich with features guaranteed to reduce installation timesand maximize profits.

The System Sensor line of notification devices offersthe most flexibile and easy-to-use line of horns, strobes, and horn strobes in theindustry. With red housing, universal fire symbol and a ceiling mount accessoryavailable these devices can meet virtually any application. They also mount toa wide variety of back box sizes to offer the most flexibility in installation.
Thông tin chi tiết
Thông số kỹ thuật
Tải catalog
  • System Sensor selectable output horns, strobes,and horn strobes are rich with features guaranteed to reduce installation timesand maximize profits.
    The System Sensor line of notification devices offersthe most flexibile and easy-to-use line of horns, strobes, and horn strobes in theindustry. With red housing, universal fire symbol and a ceiling mount accessoryavailable these devices can meet virtually any application. They also mount toa wide variety of back box sizes to offer the most flexibility in installation.
    This line of devices features a wide variety offeatures that
    simplifies installations. The mounting plateallows the devices to be compatible with a wide range of back box sizes.Settings for the strobe and horn are done using easy to set rotary switches onthe back of the device. Synchronization is achieved without the use of additionalmodules; when powered with a filtered DC source, the strobe portion is capableof self synchronization for 30 minutes per NFPA 72.
    Devices work on 24 volts DC or full wave rectifiedpower. Three candela options are available for the strobe. On the horn strobe model,high and low volume are options for the horn as well as a continuous tone ortemporal 3 output. The mini horn model has a continuous tone output and onevolume setting.
    Available accessories include a round trim ring toadapt the wall device for ceiling mount applications. Simply install the roundring over the square device for a perfect fit on the ceiling. An adapter plateis also available for the mini horn. It fits to a wider range of back boxes andfits with the family look of the horn strobe and strobe devices.
    Features
    • Mounting plate includedfor compatibility with a wide range of back box sizes
    • Three field selectablecandela settings: 15, 75, and 115
    • Easy to use rotary dialsfor selection of candela and horn settings
    • Built in synchronizationfeature keeps strobes in sync for up to 30 minutes
    • Strobes Listed to UL1638; Horns Listed to UL 464
    • Horn settings on the hornstrobe model include high and low volume, continuous or temporal 3 tone
    • Round trim ring availablefor ceiling mount applications
    • Universal Fire symbol islanguage independent
    • Trim plate allows mini horn to mount to a variety ofbackboxes and fit aesthetically with the horn strobe and strobe
    • Physical/Electrical Specifications

      Standard Operating Temperature 32°F to 120°F (0°C to 49°C)
      Humidity Range 10 to 93% non-condensing
      Strobe Flash Rate 1 flash per second
      Nominal Voltage Regulated or regulated 24 DC/FWR1
      Operating Voltage Range2 16 to 33 V (24 V nominal)
      Input Terminal Wire Gauge 14 to 18 AWG*
      Strobe and horn strobes dimensions(including lens) 5.15" L x 5.0" W x 1.5" D (131 mm x 127mm x 38mm)
      Ceiling trim ring dimensions (sold as a pack of 5) 6.8 " dia / 1.5" depth (173 mm dia / 1.5" depth)
      Mini Horn Dimensions 4.6"L x 2.9" W x 1.44" D (117 mm x 74 mm x 37mm)
      Mini horn trim plate (sold as a pack of 5) 5.1" L × 5.0" W × 1.73" D (151 mm L × 129 mm W × 43 mm D)

      Full Wave Rectified (FWR) voltage is a non-regulated,time-varying power source that is used on some power supply and panel outputs.
      * Mini horn is rated for 12 to 18 AWG
      Model DescriptionModel Description
      Wall Horn Strobes
      SYS-HS Horn Strobe
      SYS-HSR Horn Strobe, Red Lens
      Wall Strobes
      SYS-ST Strobe
      SYS-STR Strobe, Red Lens with Chinese Lettering
      Trim Plate
      SYS-CTP Round Trim Ring for Ceiling Installation
      SYS-CTPR Round Trim Ring for Ceiling Installationsfor Use with Red Lens Strobes and Horn Strobes
      Mini Horn
      MHR1 Mini-Horn, Red

      SYS-MHTP Trim Ring for use with the Mini Horn
